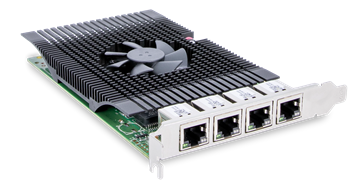

Basler 10GigE Interface Card, 4-CH#
Info
The photo may slightly differ in appearance from the actual product.
Info
- On Windows, to operate this interface card, use the correct Marvell driver for the AQC113 chipset. The Marvell AQtion 64-bit driver is available within the pylon installation in the \Development\Redist\Drivers directory. Alternatively, you can also download the latest driver from the product page of the 10GigE Interface Card, 4-CH, under Specifications / Software, or from the Marvell website.
- On Linux, the interface card is usually natively supported by the Linux kernel.
Key Features#
- Validated for GigE Vision
- Autonegotiation
- IEEE 1588 Precision Time Protocol (PTP)
- Use of Basler-assigned MAC address range for simplified identification
General Specifications#
| 10GigE Interface Card, 4-CH | |
|---|---|
| Order Number | 2200002432 |
| Ethernet Controller | Marvell AQC113 |
| Number of Ports/Channels | 4 |
| Port | RJ45 |
| Data Rate | 10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps / 10 Mbps |
| Additional Low-Profile Bracket | No |
| PCIe Version and Lane | 3.0 x8 (compatible with x16) |
| Supported Standards | IEEE 802.3an (10 Gbit/s Ethernet over unshielded twisted pair) IEEE 802.1ax (Link Aggregation) IEEE 802.3 IEEE 802.3ab (1000BASE-T Gigabit Ethernet) IEEE 802.3u (100BASE-TX Fast Ethernet) IEEE 1588 (Precision Time Protocol (PTP)) IEEE 802.3bz (2.5GBASE-T and 5GBASE-T) IEEE 802.1Q (VLAN) |
| Additional Functions | IEEE 1588 Precision Time Protocol (PTP) |
| Power Supply | PCIe |
| Conformity | CE, FCC, RoHS Certificates for your 10GigE Interface Card For more information, see the Compliance section of the Basler website. |
| Power Consumption | 1.2–19.38 W |
| Maximum Packet Size for Jumbo Frames | Up to 16348 bytes |
Jumbo Frames
If you want to use the maximum packet size for jumbo frames, set the network adapter to its maximum value as described in the Network Configuration (GigE Cameras) topic. Also set the GevSCPSPacketSize parameter to its maximum size. Bear in mind that most Basler ace 2 cameras only support a packet size of up to 8192 bytes. Basler ace 2 5GigE and Basler racer 2 S 5GigE cameras, however, support a packet size of up to 16332 bytes.
LED States#
| LED | State at 10 Gbps | State at 10 Mbps/100 Mbps/ 1 Gbps/2.5 Gbps/5 Gbps |
|---|---|---|
| Link LED | Static green | Static orange |
| Network LED | Flashing green | Flashing green |
{.large-image}
GigE Interface Card Dimensions#
Environmental Requirements#
The Basler 10GigE Interface Cards are specified for indoor use only.
| Operating Temperature | 0–50 °C (32–122 °F) |
| Storage Temperature | -40–85 °C (-40–185 °F) |
| Humidity | Maximum 90 % relative humidity, non-condensing (specified at 35 °C/95 °F) |
Allow sufficient air circulation to keep the temperature during operation below 50 °C (122 °F). Additional cooling devices are not normally required, but should be provided if necessary.
