Basler Light Bar-17x200-Power-x#

Basler High-Power Bar Lights can be used in various applications where a high light intensity is required and to illuminate objects at long distances.

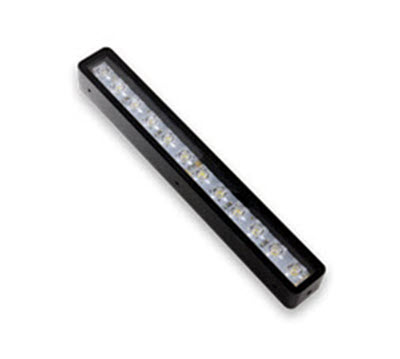

Basler Light Bar

Info

The photo may slightly differ in appearance from the actual product.

Key Features#

Internal LED controller with 2 operating modes
Compatible with Basler SLP Strobe Controller
Preconfigured hardware components
Various sizes and LED colors

General Specifications#

	Basler Light Bar-17x200-Power-Red	Basler Light Bar-17x200-Power-White	Basler Light Bar-17x200-Power-Blue	Basler Light Bar-17x200-Power-Infrared
Order Number	2200002525	2200002524	2200002526	2200002527
Order Number, IP67 Lights	2200002531	2200002530	2200002532	2200002533
Peak Wavelength	625 nm	-	465 nm	850 nm
Color Temperature	-	5000 K	-	-
LED Color	Red	White	Blue	Infrared
Luminous Area	17 x 200 mm	17 x 200 mm	17 x 200 mm	17 x 200 mm
Recommended Light Working Distance	250–900 mm	250–900 mm	250–900 mm	250–900 mm
Risk Class (according to IEC 62471)	RG1	RG1	RG1	RG1

	Basler Light Bar-17x200-Power-x
Conformity	CE (includes RoHS), IP54, IP67 The lights listed under “Order number, IP67” in the table above are IP67-compliant. All other lights only have IP54 conformity.

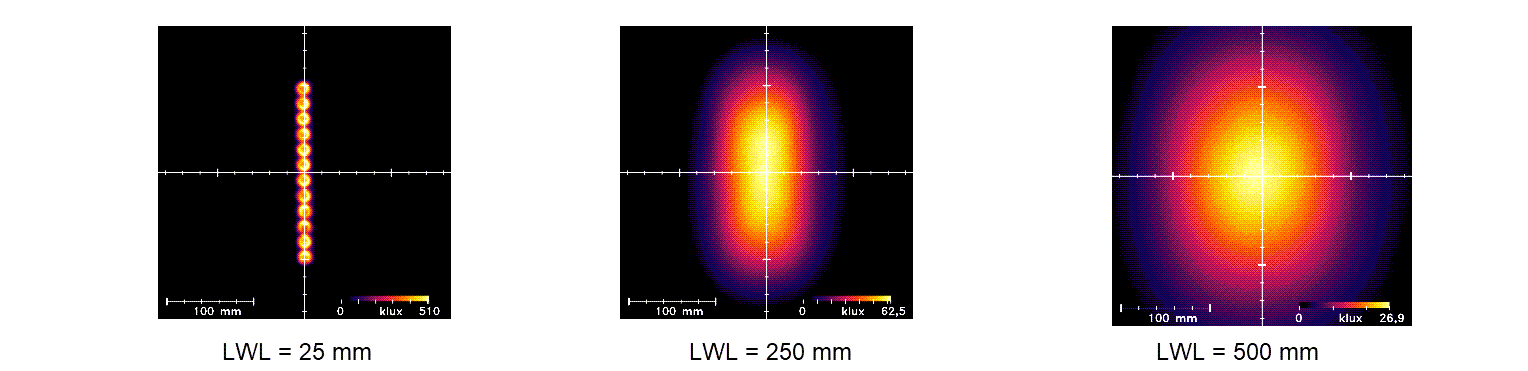

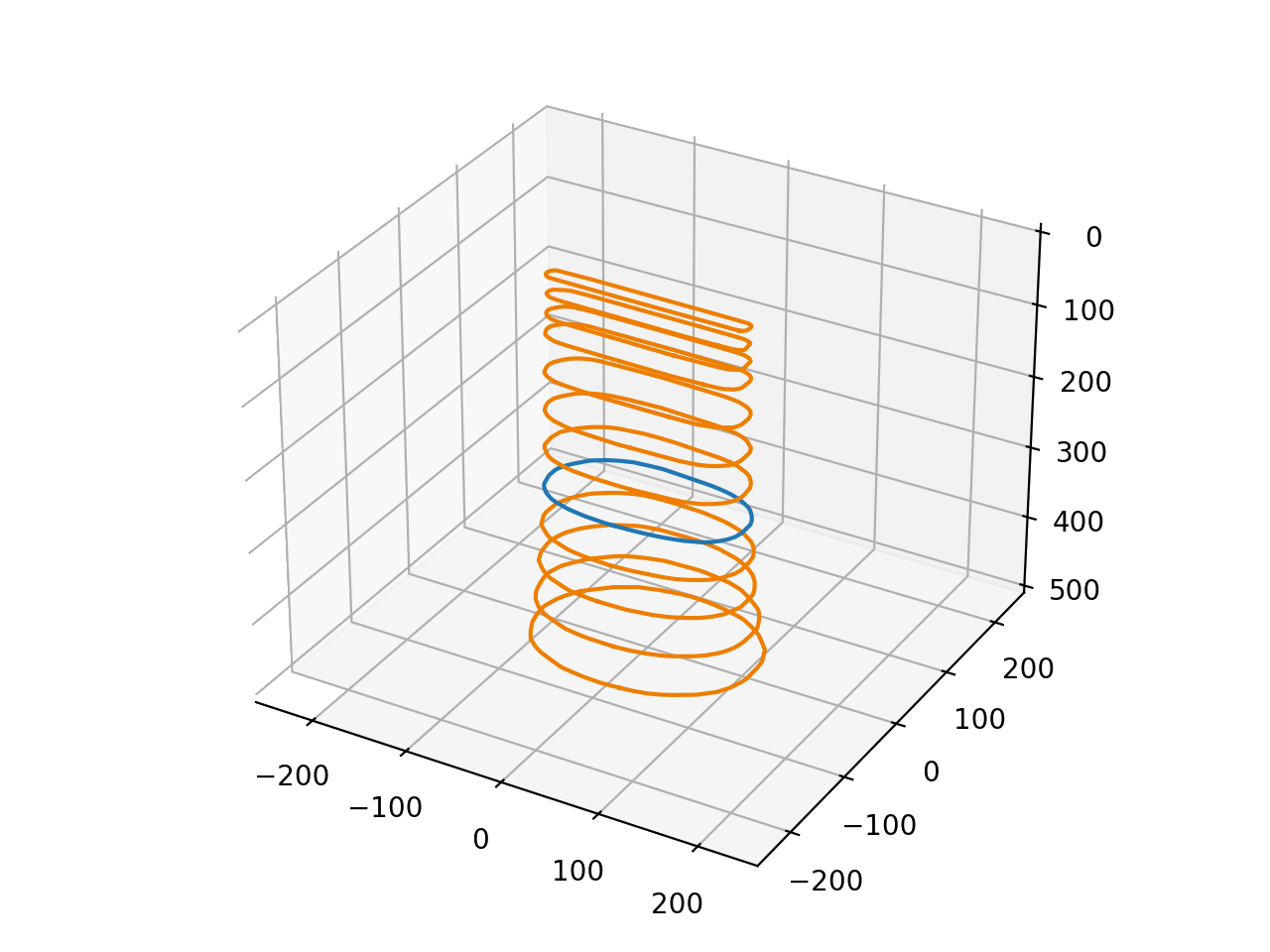

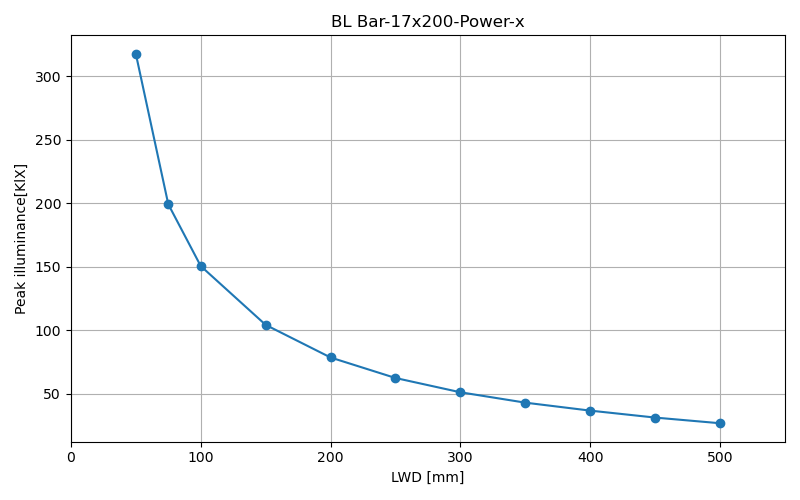

LED Specifications#

	Bar Light Series 17x200-Power-x
Luminous Power of White LEDs (lumen)	1145
Radiant Power of Red LEDs (mW)	2050
Radiant Power of Blue LEDs (mW)	3110
Radiant Power of IR LEDs (mW)	1910

Electrical Specifications#

	Bar Light 17x200-Power-x
Required Power for Voltage Control Mode	24 VDC ± 5 %, Red: 9 W, White and Blue: 12 W Infrared: 7 W
Required Current for Current Control Mode	Red, White, Blue, Infrared: 600 mA
Recommended max. LED Current for Strobe Mode (50 % Duty Cycle, < 500 ms Pulses)	Red, White, Blue, Infrared: 1200 mA
Recommended max. LED Current for Strobe Mode (25 % Duty Cycle, < 50 ms Pulses)	Red, White, Blue, Infrared: 1800 mA
Recommended max. LED Current for Strobe Mode (10 % Duty Cycle, < 5 ms Pulses)	Red, White, Blue, Infrared: 2400 mA
Recommended min. Flash Time in Strobe Mode	100 µs

Mechanical Specifications#

	Bar Light 17x200-Power-x
Dimensions (H x W x D)	27 x 210 x 23 mm
Weight	250 g
Material	Black anodized aluminum housing with PMMA light cover
Connector	M12 5-pin male

Bar Light Dimensions#

Basler Bar Light 17x200x

Connector Pin Numbering#

Info

The lights are equipped with an M12 5-pin connector. For more information about the installation, see here.

Info

The pin assignment of the light's connector differs depending on whether you want to use the internal or an external controller. For more information, see the respective tables in the Installation chapter.

Environmental Requirements#


Temperature During Operation	10–30 °C (50–86 °F) / 45 °C (113 °F)^a
Humidity During Operation	30–70 %

For steady light operation without additional heat dissipation measures, a maximum of 30 °C (86 °F) is recommended. For a maximum of 45 °C (113 °F), heat dissipation measures are mandatory.
For flash light operation with a maximum 10 % duty cycle, a maximum of 45 °C (113 °F) is also permissible.
