Heat Sinks and Compressed Air Cooler (ace 2, racer 2 S)#

The heat sinks and the compressed air cooler for Basler ace 2 and Basler racer 2 S cameras provide an efficient way for heat dissipation during camera operation.

Installing a cooling device is only necessary if your application causes the camera to exceed its maximum operating temperature specified in the "Environmental Requirements" section of your camera model topic. You can find your camera topic in the Area and Line Scan Cameras section.

The following heat sinks are available:

Heat Sink#

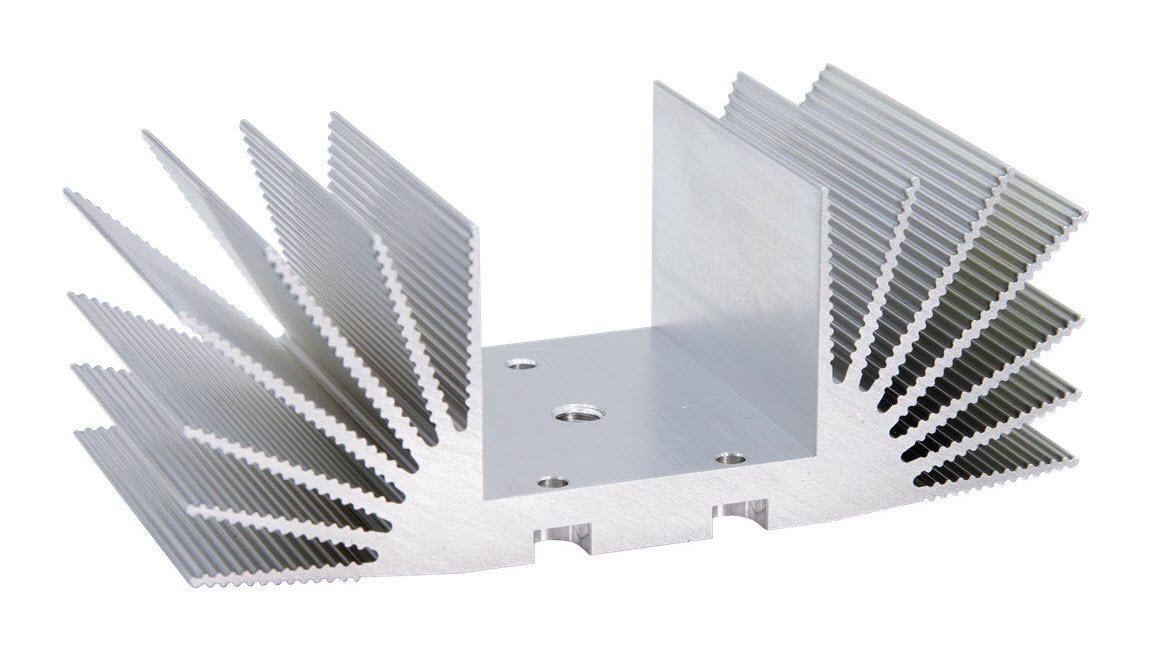

Heat Sink for Basler ace 2 and racer 2 S Cameras

  • Order number: 2200000998
  • The heat sink is delivered with three screws for attaching it to the camera.

Technical Drawings#

Basler ace 2 and racer 2 S Heat Sink Dimensions

Mounting Heat Sink, ace 2 and racer 2 S Cameras

Physical Specifications#
Dimensions See Technical Drawings
Material Clear anodized aluminum
Thermal Resistance 2.1 K/W
Screws M3 × 5 mm, A2

General Information#
RoHS Compliance Yes
Warranty 3 years

Heat Sink HP#

Heat Sink HP for Basler ace 2 and racer 2 S Cameras

  • Order number: 2200002955
  • The heat sink is delivered with three screws for attaching it to the camera.

Technical Drawing#

Basler ace 2 and racer 2 S Heat Sink HP Dimensions

Physical Specifications#
Dimensions See Technical Drawing
Material Clear anodized aluminum
Thermal Resistance 1.3 K/W
Screws M3 × 6 mm, A2

General Information#
RoHS Compliance Yes
Warranty 3 years

Compressed Air Cooler#

Compressed Air Cooler for Basler ace 2 and racer 2 S Cameras

  • Order number: 2200002384
  • The compressed air cooler is delivered with three screws for attaching it to the camera.

Info

The compressed-air cooler is supplied ready for operation with compressed air. If you want to use water as the cooling medium, replace the sealing ring installed in the push‑in fitting with Festo sealing ring OL‑1/8 prior to operation.

Technical Drawing#

Basler ace 2 and racer 2 S Compressed Air Cooler Dimensions

Physical Specifications#
Dimensions See technical drawing above
Material Black anodized aluminum
Max. Operating Pressure 12 bar
Interfaces 2 pneumatic plug-in connections for compressed air hoses (Ø8 mm)
2 connection threads, G 1/8"
Screws M3 × 16 mm, A2

General Information#
Warranty 3 years

For more information about your camera, installation, and providing heat dissipation, read the following topics:
