Operator LED

Operator Library: Hardware Platform

The LED operator provides an interface for accessing the board LEDs of the frame grabber via the applet.

Driving a logic HIGH on the input forces the correspondent board LED to light on. Driving a logic LOW on the input forces the correspondent board LED to light off.

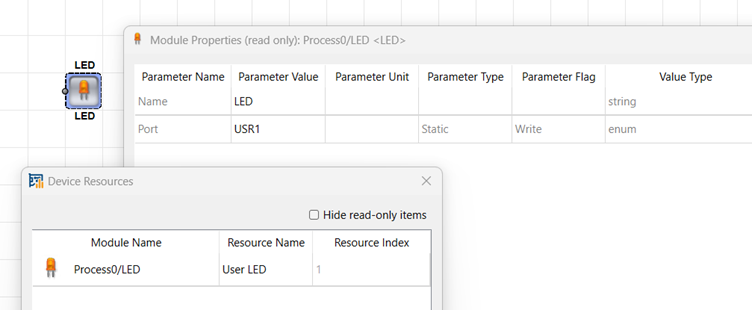

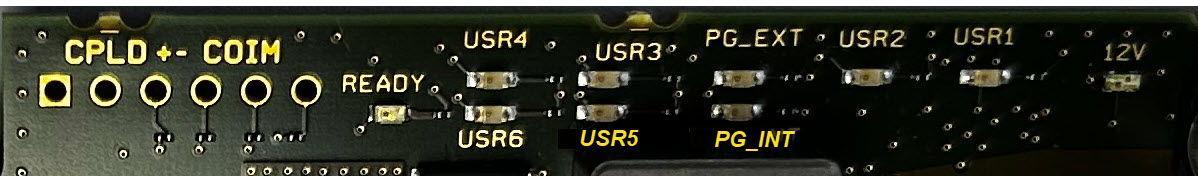

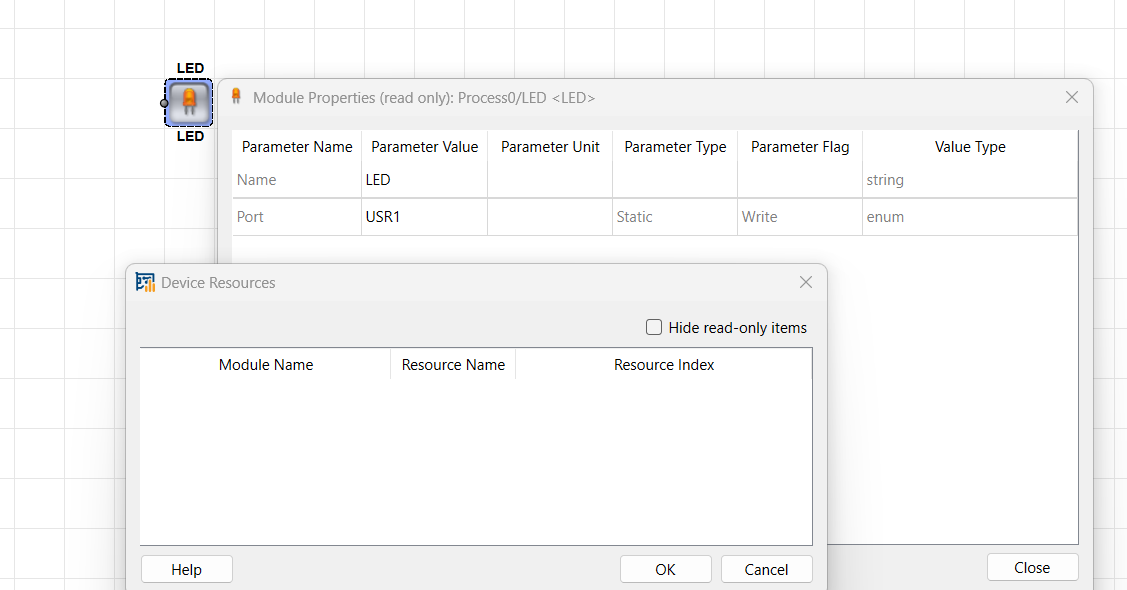

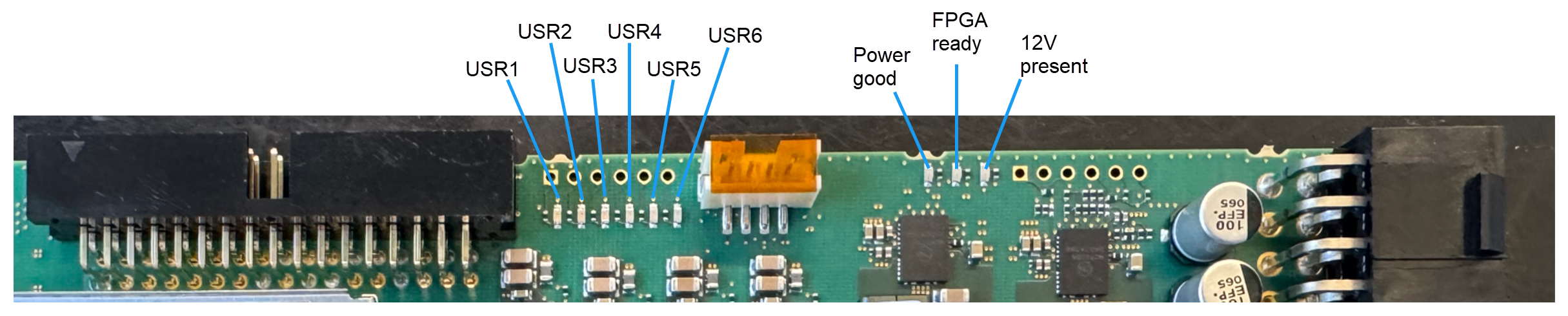

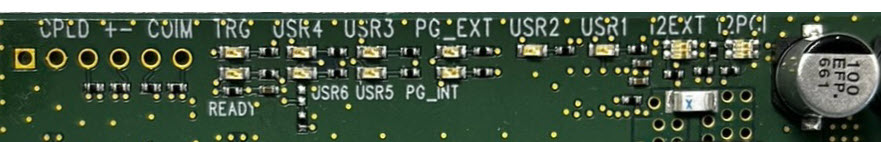

For the exact location of board LEDs on the frame grabber, see the manual of your frame grabber.

Available for Hardware Platforms
imaFlex CXP-12 Quad
mE5 marathon VCLx
mE5 marathon VCL
mE5 marathon VCX-QP1
mE5 marathon VF2
LightBridge VCL
mE5 ironman VQ8-CXP6D
mE5 ironman VQ8-CXP6B
mE5 ironman VD8-PoCL

1

On marathon VCX-QP, the numbering of the LEDs is mirrored, see parameter description of parameter Port below.

I/O Properties

Property Value
Operator Type M
Input Link I, signal input

Supported Link Format

Link Parameter Input Link I
Bit Width 1
Arithmetic unsigned
Parallelism 1
Kernel Columns 1
Kernel Rows 1
Img Protocol VALT_SIGNAL
Color Format VAF_GRAY
Color Flavor FL_NONE
Max. Img Width any
Max. Img Height any

Parameters

Port
Type static write parameter
Default USR1
Range

imaFlex CXP-12 Quad: {USR1, USR2, USR3, USR4, USR5, USR6}

LightBridge VCL, mE5 marathon VCLx, and mE5 marathon VCL: {USR1, USR2}

mE5 marathon VCX-QP and mE5 marathon VF2: {USR1, USR2, USR3, USR4}

The parameter defines which of the board LEDs will be connected by the operator.

imaFlex CXP-12 Quad:

  • USR1 maps the operator to the slot LED USR1.

  • USR2 maps the operator to the slot LED USR2.

  • USR3 maps the operator to the slot LED USR3.

  • USR4 maps the operator to the slot LED USR4.

  • USR5 maps the operator to the slot LED USR5.

  • USR6 maps the operator to the slot LED USR6.

mE5 marathon VCLx, mE5 marathon VCL, LightBridge VCL:

  • USR1 maps the operator to the slot LED USR1.

  • USR2 maps the operator to the slot LED USR2.

mE5 marathon VF2:

  • USR1 maps the operator to the slot LED USR1.

  • USR2 maps the operator to the slot LED USR2.

  • USR3 maps the operator to the slot LED USR3.

  • USR4 maps the operator to the slot LED USR4.

mE5 marathon VCX-QP:

  • USR1 maps the operator to the slot LED 4.

  • USR2 maps the operator to the slot LED 3.

  • USR3 maps the operator to the slot LED 2.

  • USR4 maps the operator to the slot LED 1.

To turn the LED ON, the input I must be driven HIGH. To turn the LED OFF, the input I must be driven LOW.

[Important] Platforms

This parameter is used with the following platforms:

  • imaFlex CXP-12 Quad (value range {USR1, USR2, USR3, USR4, USR5, USR6})

  • mE5 marathon VCLx (value range {USR1, USR2})

  • mE5 marathon VCL (value range {USR1, USR2})

  • mE5 marathon VCX-QP (value range {USR1, USR2, USR3, USR4})

  • mE5 marathon VF2 (value range {USR1, USR2, USR3, USR4})

  • LightBridge VCL (value range {USR1, USR2})

Pin_ID
Type static write parameter
Default 0
Range [0;3]

The Pin_ID parameter defines which of the 4 board LEDs will be connected by the operator. Range is [0; 3].

[Important] Platforms

This parameter is used with these platforms:

  • mE5 ironman VQ8-CXP6D

  • mE5 ironman VQ8-CXP6B

  • mE5 ironman VD8-PoCL

Examples of Use

The use of operator LED is shown in the following examples:

  • 'Hardware Test'

    An example for hardware self test of DMA, RAM, GPIOs, Trigger and LEDs.
